Installation tools matched to the fasteners we supply – for correct installation, consistent joint quality and higher assembly-line productivity.

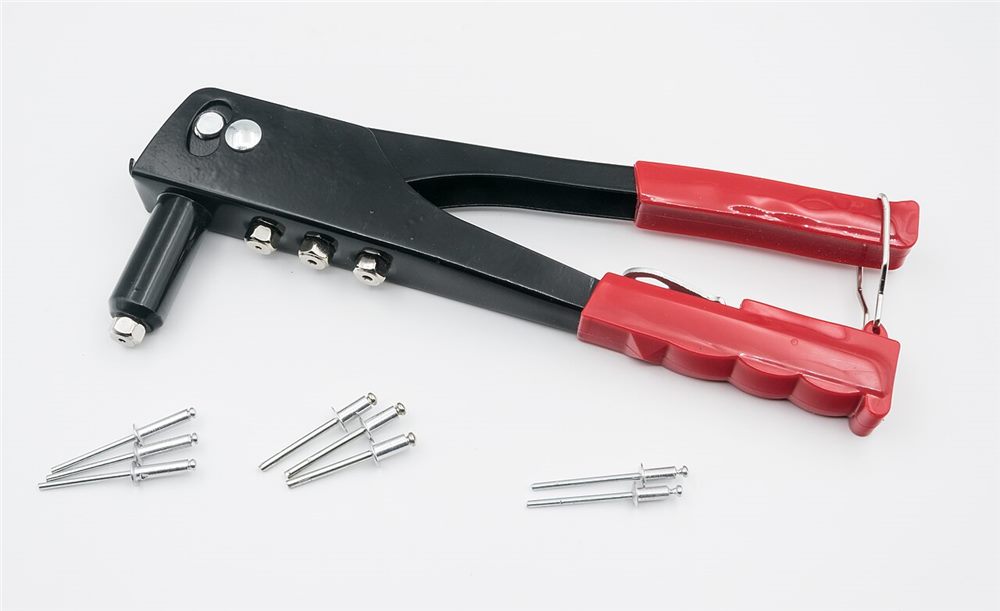

Hand · Pneumatic · Battery
Hand, pneumatic and battery tools for Ø2.4 – Ø6.4 mm rivets.
| Types | Rivet range | Suited for |
|---|---|---|
| Hand riveter | Ø2.4 – Ø4.8 mm | Maintenance, low volume |
| Lever riveter | Ø3.2 – Ø6.4 mm | Large and stainless rivets |
| Pneumatic riveter | Ø2.4 – Ø6.4 mm | Production |
| Battery riveter | Ø2.4 – Ø6.4 mm | On-site work |
Supplied with nose pieces for each rivet size. Unit: mm.
Quote this item →
M3 – M12
Hand and pneumatic tools for rivet nuts and studs with quick-change heads.
| Types | Rivet nut range | Suited for |
|---|---|---|
| Hand rivet nut tool | M3 – M8 | Maintenance, low volume |
| Lever rivet nut tool | M4 – M10 | Steel and stainless nuts |
| Pneumatic rivet nut tool | M3 – M12 | Production |
| Battery rivet nut tool | M3 – M10 | On-site work |
Quick-change heads and mandrels; also for rivet studs. Unit: mm.
Quote this item →
STI taps · Installers
STI taps, installation tools, tang break-off and extraction tools per size.
| Parameter | Value |
|---|---|
| Range | M2 – M24 · UNC / UNF |
| STI taps | Hand and machine taps per size |
| Installation tools | T-handle, prewinder, pneumatic installer |
| Accessories | Tang break-off tool, extraction tool |
| Kits | Repair kits with taps, tools and inserts |
Tools are matched to the insert size and pitch. Unit: mm.
Quote this item →

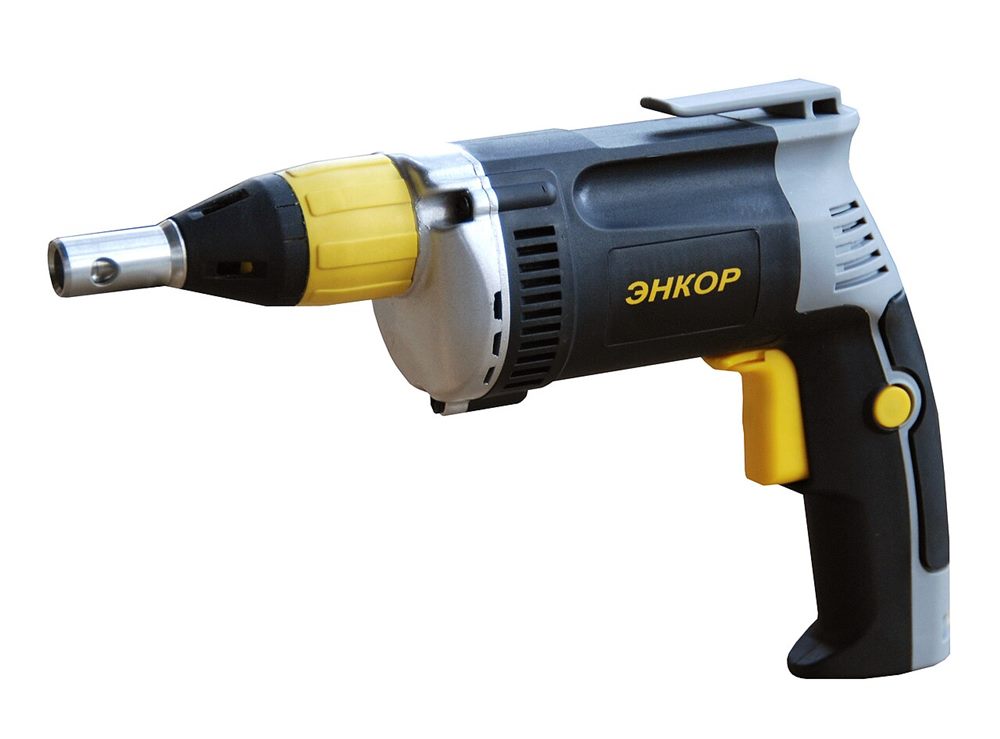

Electric · Pneumatic
Electric and pneumatic screwdrivers with adjustable torque for assembly lines.
| Types | Torque range (≈) | Suited for |
|---|---|---|
| Electric screwdriver | 0.2 – 5 N·m | Electronics, small devices |
| Pneumatic screwdriver | 1 – 15 N·m | Assembly lines |
| Battery screwdriver | 1 – 30 N·m | Installation, maintenance |
Clutch shut-off, screw counting and controller options available. Unit: mm.
Quote this item →Wrench · Driver

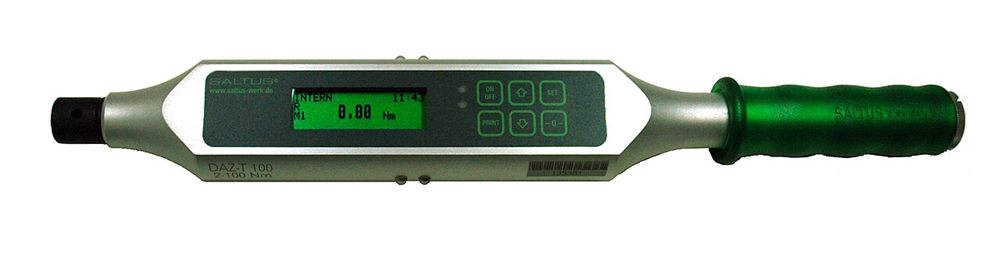

Control tightening torque to spec, reducing assembly errors and thread damage.
| Types | Torque range | Accuracy |
|---|---|---|
| Torque screwdriver | 0.1 – 10 N·m | ± 6 % |
| 3/8" torque wrench | 5 – 60 N·m | ± 4 % |
| 1/2" torque wrench | 20 – 200 N·m | ± 4 % |
| 3/4" torque wrench | 100 – 500 N·m | ± 4 % |
Accuracy per ISO 6789 for indicating / setting tools; calibration certificate on request. Unit: mm.
Quote this item →| Tool types | Manual, pneumatic, battery, electric |
|---|---|
| Range | Rivets Ø2.4 – Ø6.4 mm; rivet nuts M3 – M12; inserts M2 – M24 |
| Spare parts | Nose pieces, jaws and size-specific bits – supplied on request |
| Support | Tool selection advice based on fastener and volume |
Manual tools suit maintenance and low volumes. Pneumatic or battery tools suit mass production, reducing fatigue and keeping quality consistent.
Yes. Nose pieces, jaws and size-specific bits are supplied on request to keep tools running reliably.
We guide you on sizing, setup and correct installation at delivery or online.
Send part numbers, quantities or drawings. We will get back to you to clarify specs and propose the right solution.
